Shapeoko 5 Pro vs OneFinity Elite
Both land on shortlists for buyers weighing a serious hobby CNC. The Shapeoko 5 Pro runs $2,980 with belt drive (GT3 timing belts); the OneFinity Elite runs $2,500-4,000+ with precision ball screws on all axes. Here's how they actually stack up, and who each one is for.
Quick Verdict
This is the belts-versus-ball-screws argument in its purest form, at roughly the same money. OneFinity wins the spec sheet: ball screws on every axis, a steel tube frame, and the Redline controller with its own touchscreen and CAM. Shapeoko wins everything that isn't on a spec sheet. Carbide 3D's support gets brought up unprompted in threads, and the community is big enough that your problem has already been solved by someone. Belts are fine for wood and plastic. If aluminum is a big part of your plan, the ball screws start to matter.
Specs, Side by Side
| Shapeoko 5 Pro | OneFinity Elite | |
|---|---|---|
| Price | $2,980 | $2,500-4,000 |
| Status | Active | Active |
| Work Area | 18" x 18" | 33" x 33" |
| Frame | Hybrid steel and aluminum construction | Ultra-rigid steel tube frame with additional stiffening |
| Drive System | Belt drive | Precision ball screws on all axes |
| Linear Motion | Hybrid V-wheels and linear rails | Hardened steel hollow linear motion shafts |
| Motors | NEMA 23 stepper motors | High-torque stepper motors |
| Controller | Carbide 3D controller | Redline CNC controller with 15" HD touchscreen |
| Spindle | Makita RT0002 trim router or optional VFD spindle | 80mm spindle mount |
| Collet | Makita collets | Depends on spindle choice |
| Max RPM | 10,000-30,000 | Depends on spindle choice |
| Enclosure | Optional | None |
| Assembly | Kit | Preassembled rails |
| Software | Includes Carbide Motion | Redline controller with built-in CAM; Carveco Maker inclu... |
Highlighted rows = the two machines differ. Tap a machine name for the full profile.

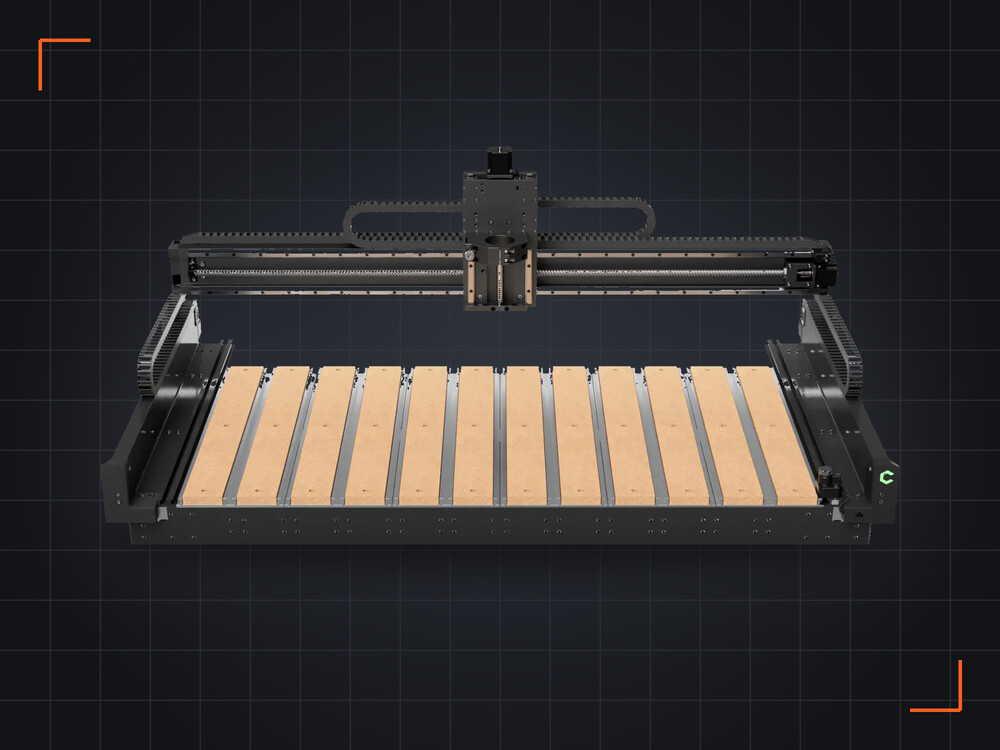

The Shapeoko 5 Pro in This Matchup
Next to the OneFinity Elite, the Shapeoko 5 Pro leads with belt drive and a 18" x 18" work area at $2,980. The Shapeoko 5 Pro is Carbide 3D's answer to the criticism that belt-drive machines can't be serious tools. The hybrid construction, improved rigidity, and ability to cut aluminum prove otherwise.
Community: Extremely positive. "Can't go wrong with a Shapeoko" is the mantra.

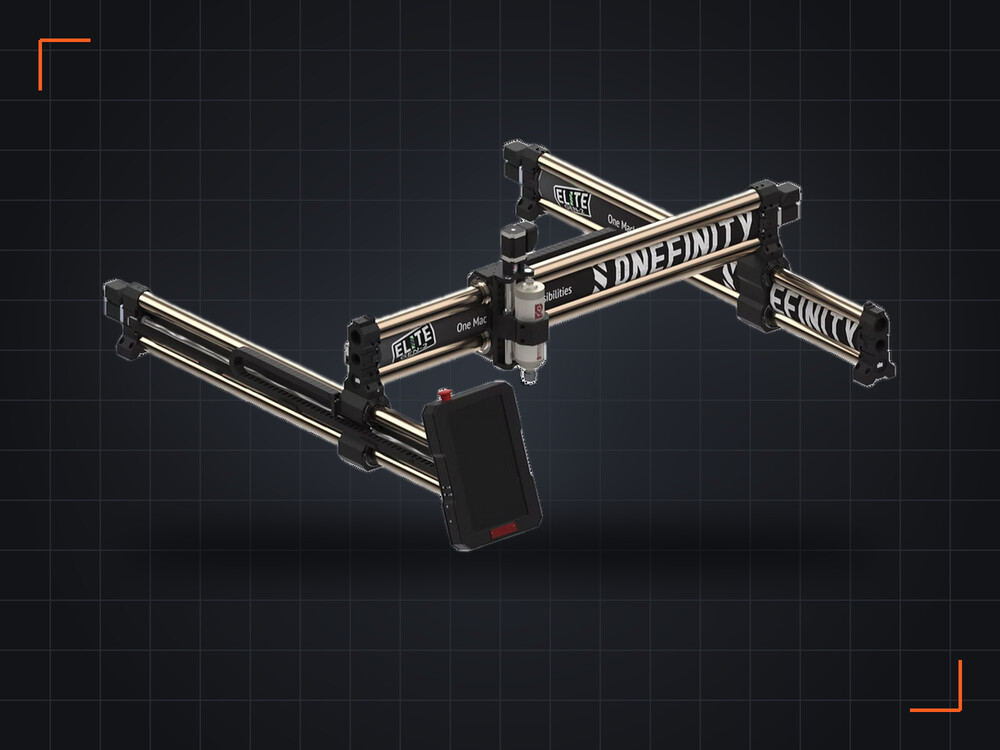

The OneFinity Elite in This Matchup
Next to the Shapeoko 5 Pro, the OneFinity Elite leads with precision ball screws on all axes and a 33" x 33" work area at $2,500-4,000+. The Gen 2 Elite Series represents OneFinity's maturation. They took the solid Gen 1 mechanical platform (ball screws, steel frame) and addressed the main criticism: the controller.
Community: Very positive reception for Gen 2. "They fixed the controller issues" is the consensus.
Bottom Line
- →Buy the Shapeoko 5 Pro if support and community matter more to you than the spec sheet.
- →Buy the OneFinity Elite if you want ball screws, a touchscreen, and CAM that runs on the machine itself.
- →Still unsure? Run both through the side-by-side comparison tool or the beginner buying guide.
