Free Nautical & Coastal CNC Relief Heightmaps
Anchors, compass roses, and coastal motifs are a natural fit for lake houses, beach places, and anyone who loves the water. A relief carving reads better than a decal or a flat engraving, especially on a nice piece of teak or white oak. These are 16-bit grayscale heightmaps, ready for VCarve, Carveco, or Aspire. Download it free, scale to your stock, and cut.
Anchor
nauticalmaritimeanchor
499 KB
Compass Rose
compassnauticalnavigation
567 KB

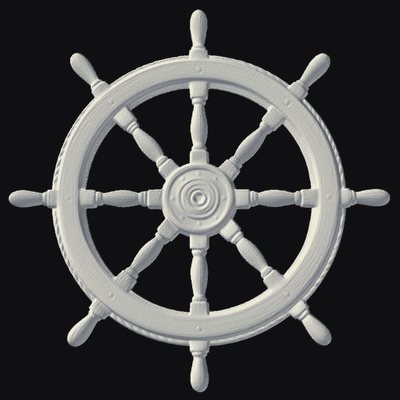

Ship's Wheel
nauticalcoastalship
302 KB
Project ideas for nautical & coastal reliefs
- • Lake house and beach wall signs
- • Name boards for the dock or the cabin
- • Compass wall pieces
- • Coasters and gifts for boaters
Wood: White oak and teak suit the theme and hold up to humidity. Cedar carves easy and smells great for signs.
Finish: Spar urethane if it will see weather. For indoor pieces, a satin oil finish.
Bits: A 1/4" ball nose to rough, then a 1/16" tapered ball nose to finish the rope and lettering detail.
